Kitchen Grease Duct - Model PS/IPS

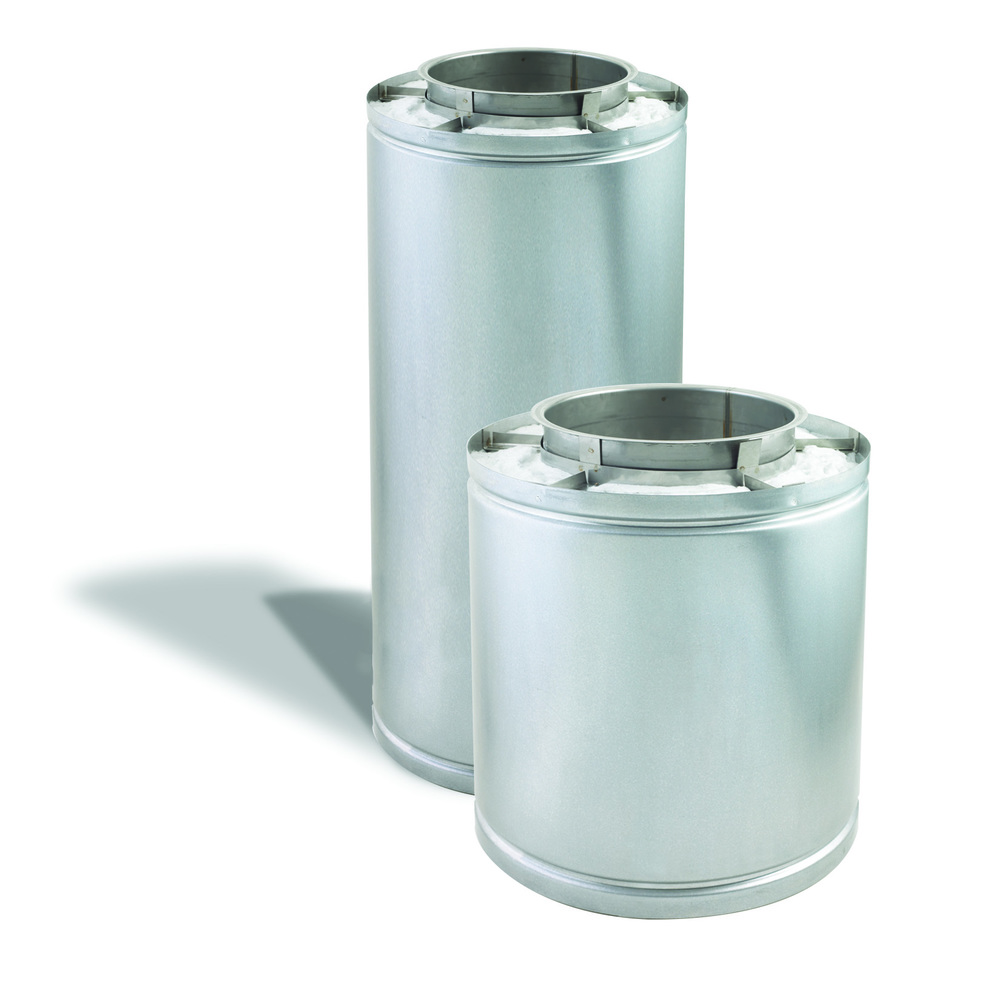

Models PS and IPS are double wall, modular, prefabricated venting systems:

Factory-built for high quality, durability, ease of installation and long life
Cylindrical construction for superior strength vs. field fabricated
5" to 48" diameters (ID) in double wall for a wide range of commercial applications
Insulation options include 1" air or 1" - 4" of fiber blanket
Safety tested to stringent test requirements – UL 1978; includes a 30-minute, 2000 °F grease fire test

Featured

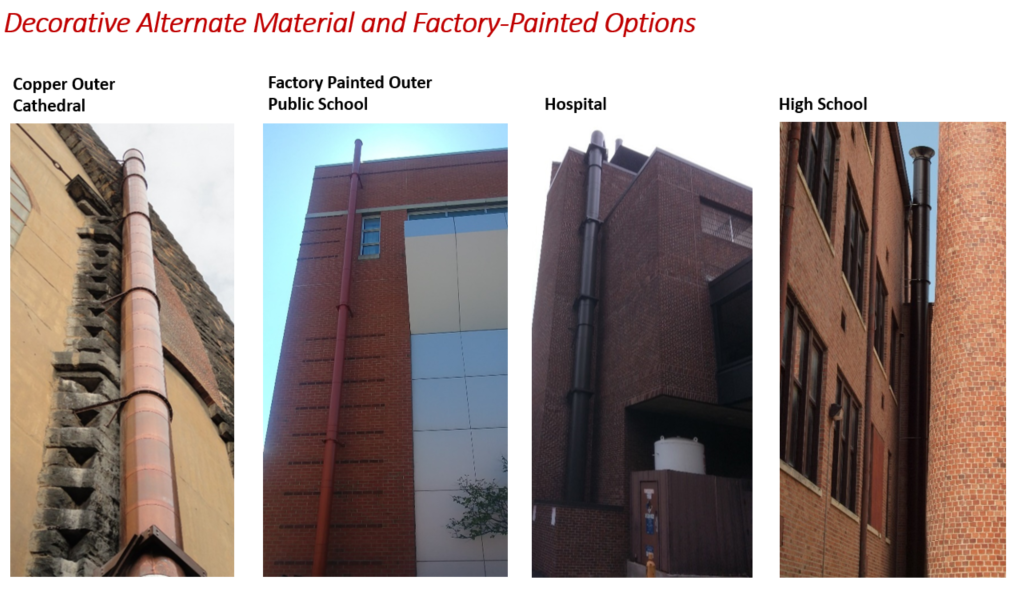

Decorative Outer Wall Options

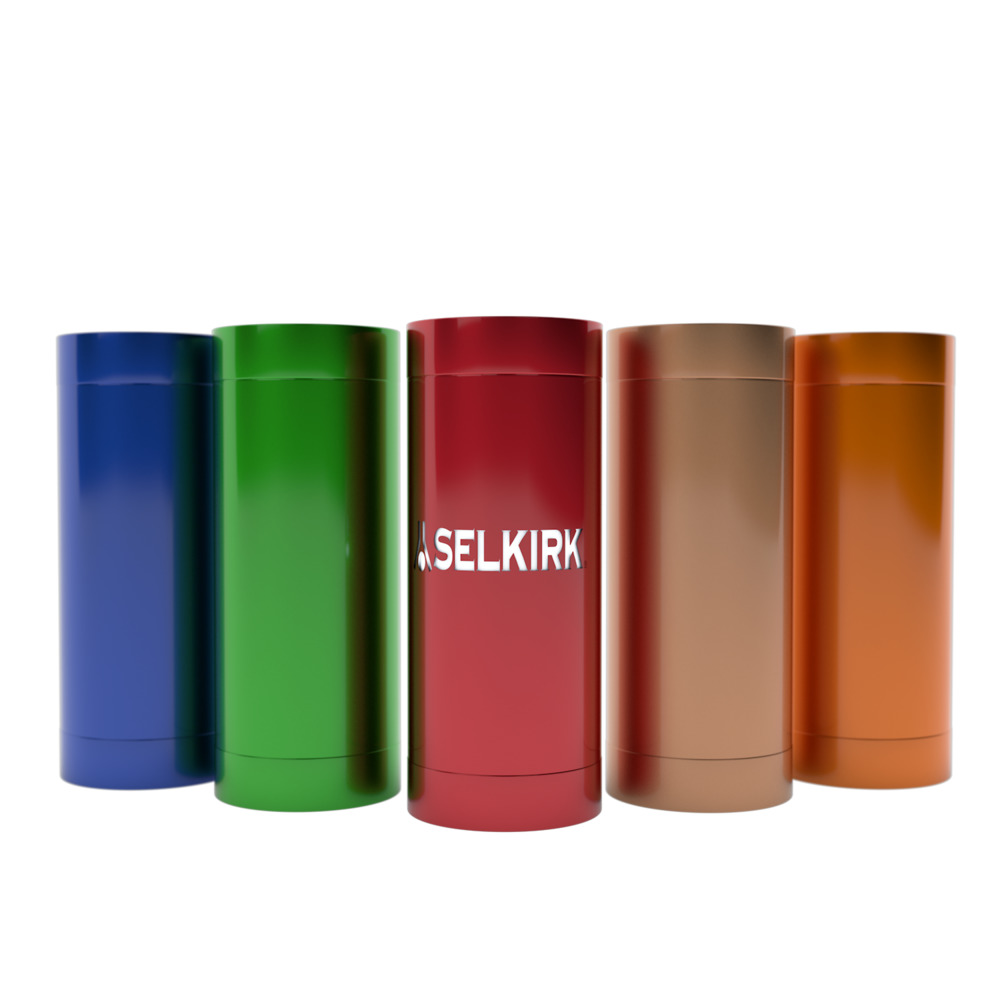

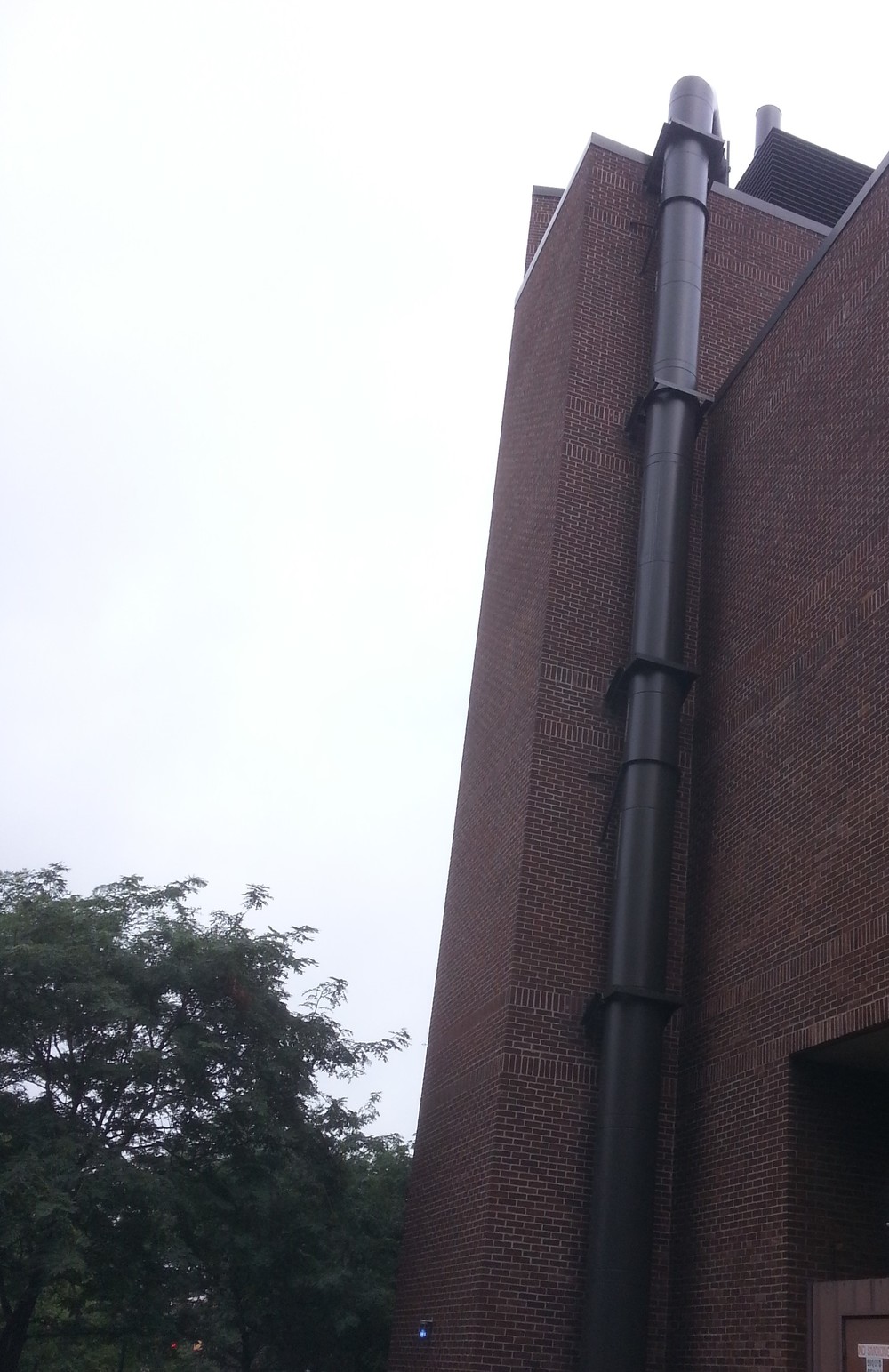

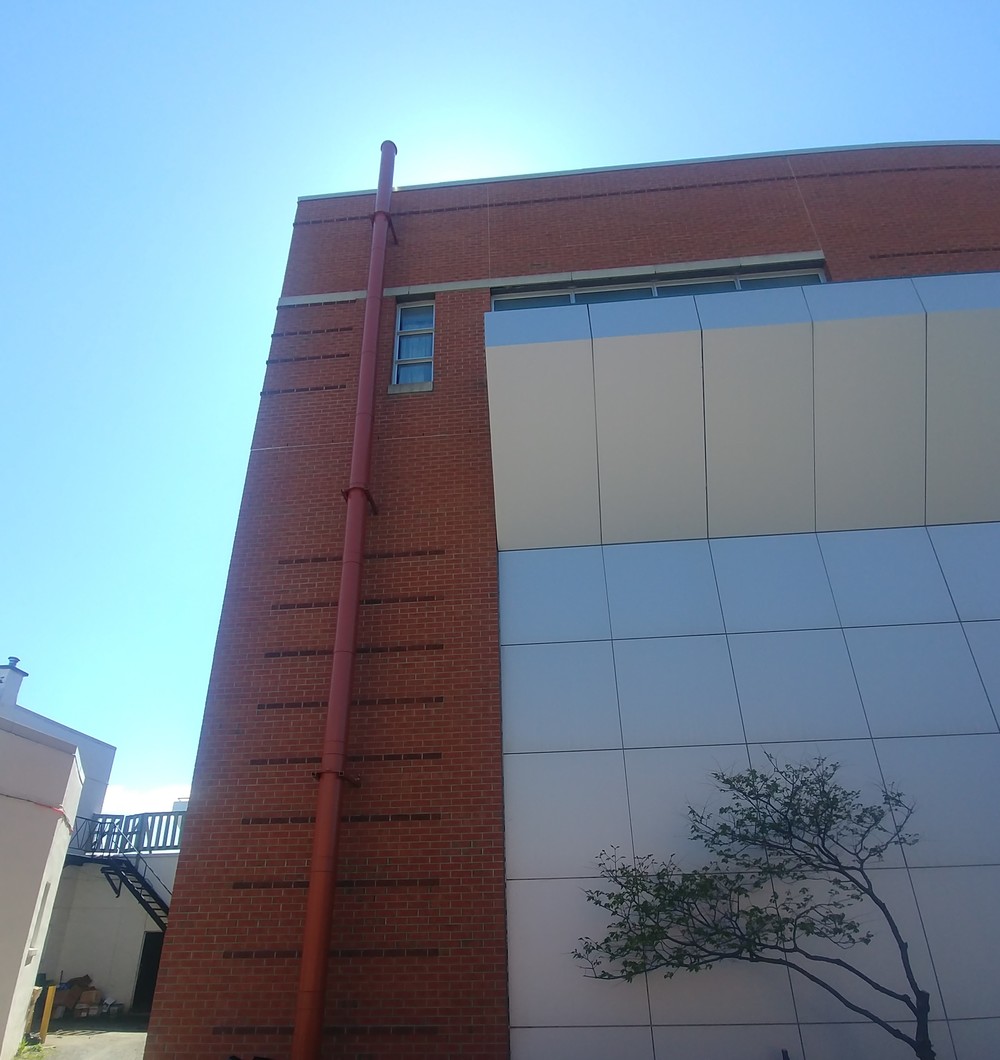

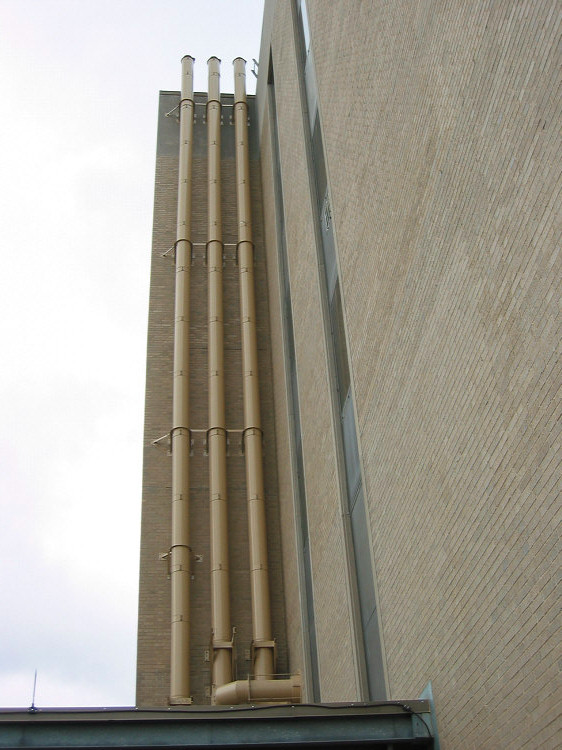

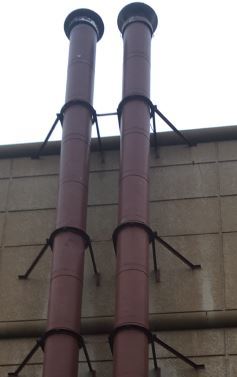

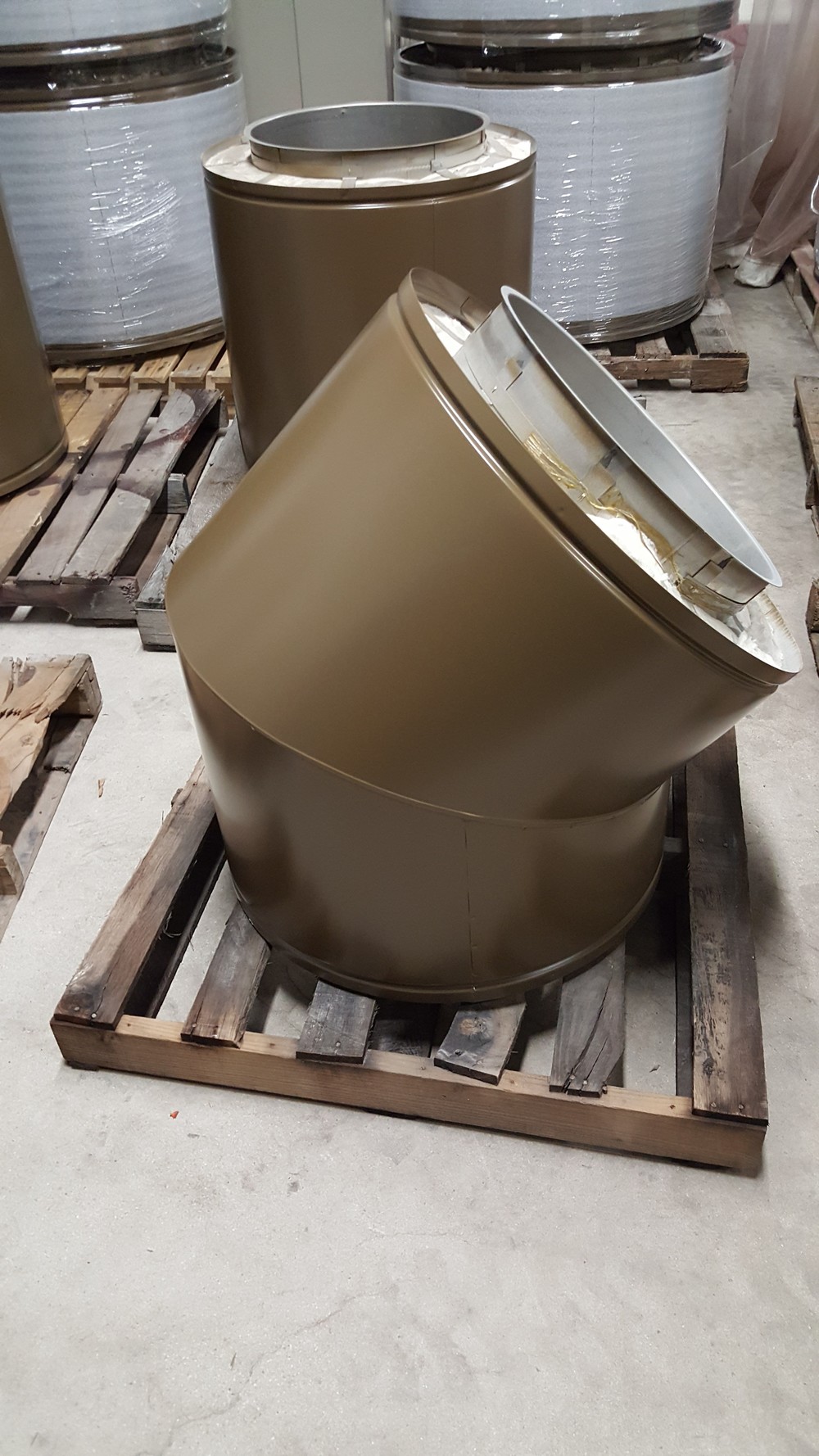

Painted colors – 180 standard RAL color options

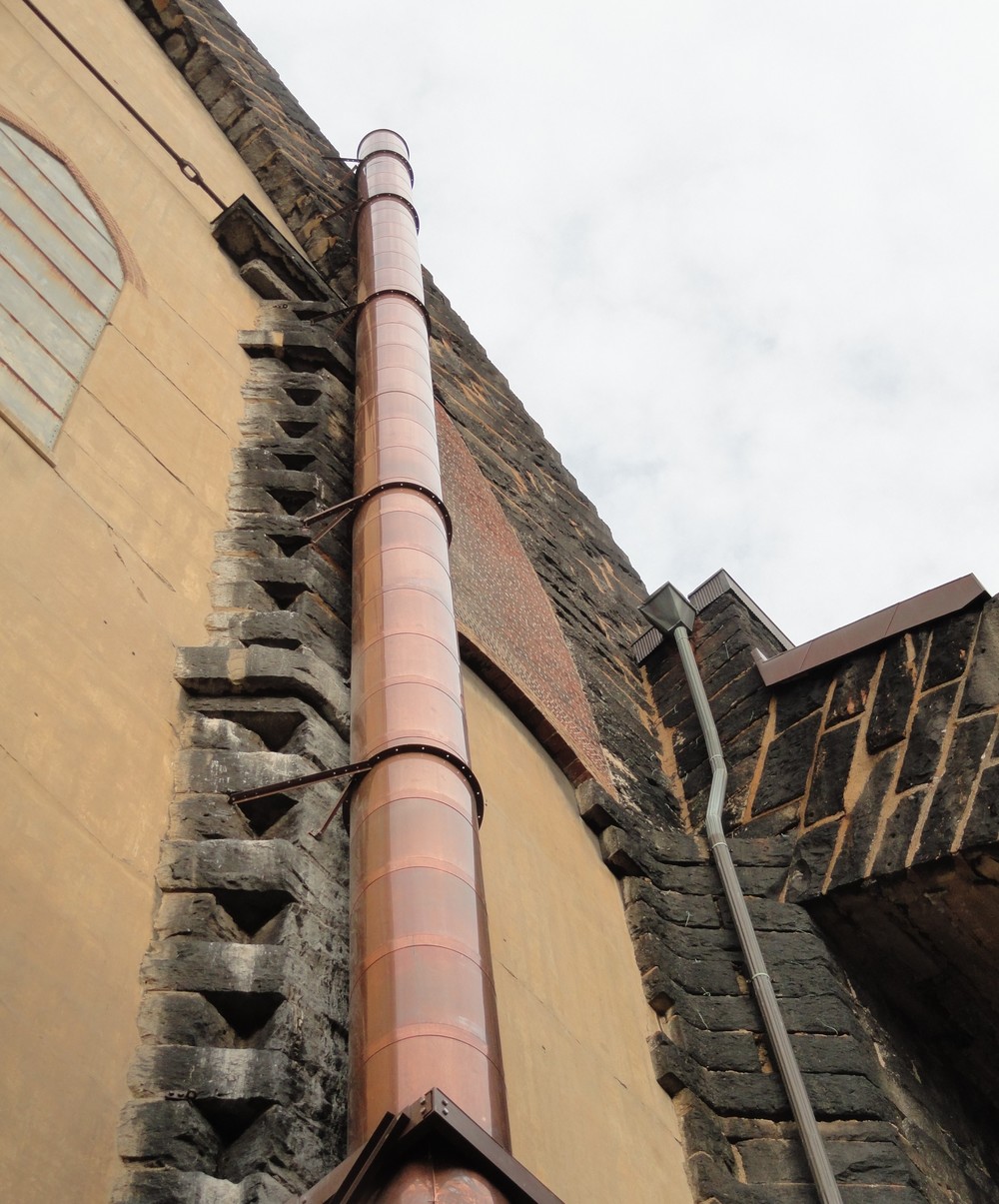

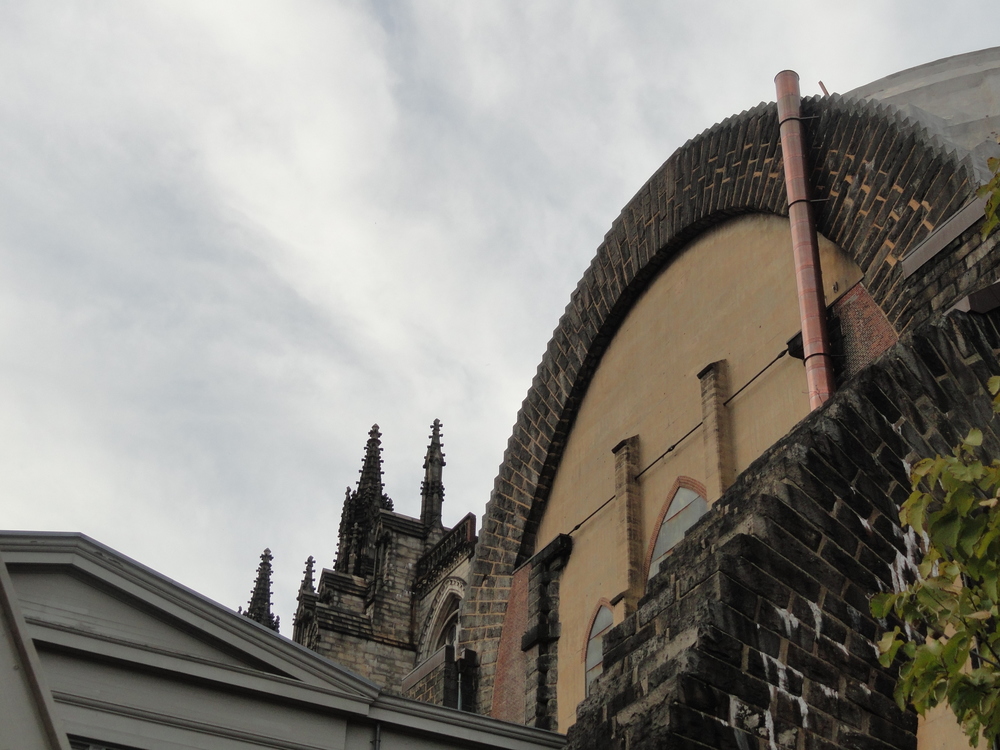

Alternate materials such as copper and polished stainless steel

Array of styling options customized to your unique interior or exterior application for an enhanced appearance – from matching a building facade to creating an inviting space that leaves a lasting impression.

Features & Benefits:

Factory-built for high quality, durability, ease of installation and long life
5” to 48” diameters (ID) to fit the wide range of commercial applications and customer specifications
Stainless steel cylindrical construction, for superior strength at much higher temperatures versus rectangular carbon steel field fabricated systems
Insulation options include 1” air or up to 4” of dense fiber blanket for stringent skin temperature requirements

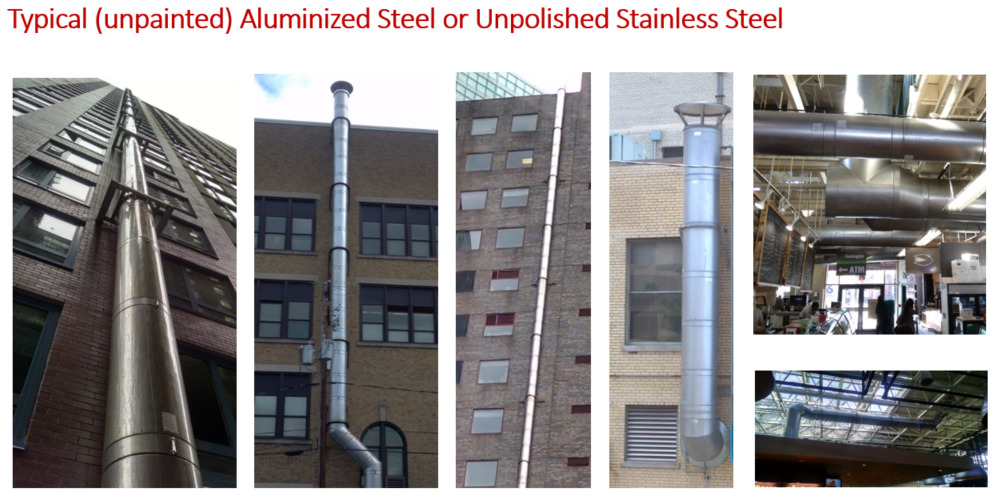

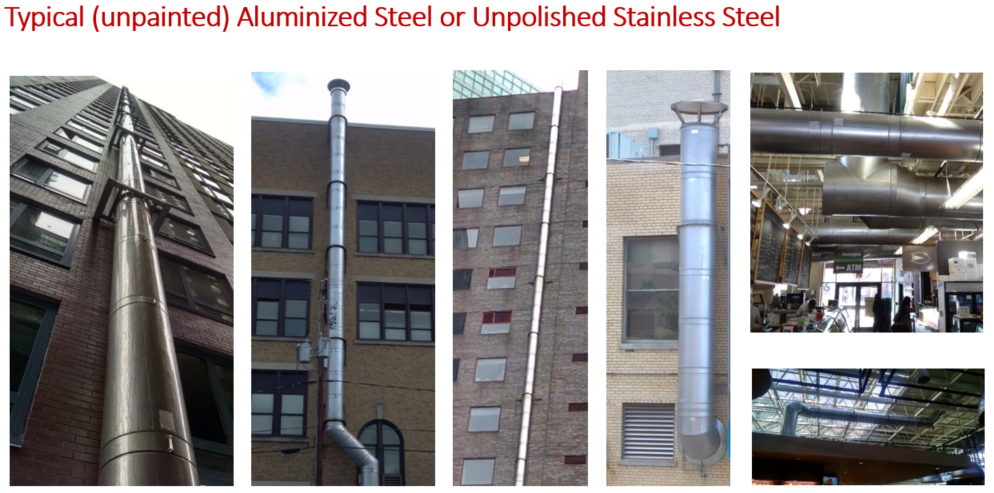

Available in both stainless and aluminized steel exteriors

Features & Benefits (Cont.):

Small footprint with minimal horizontal slope required (1/16” per foot) as compared to field welded/wrapped rectangular duct (1/4” per foot)
Safety tested to stringent test requirements – UL 1978; includes a 30-minute, 2000 °F grease fire test

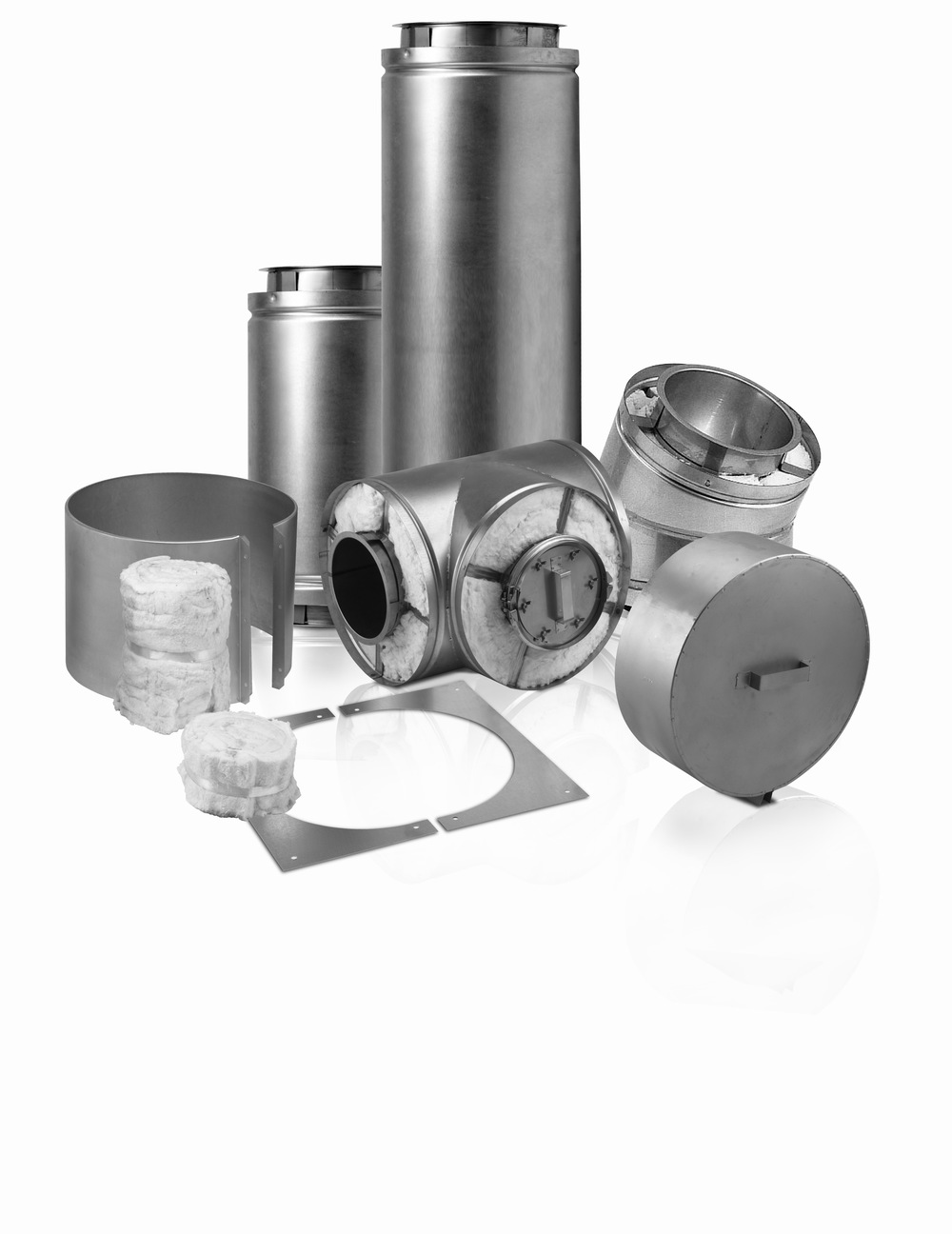

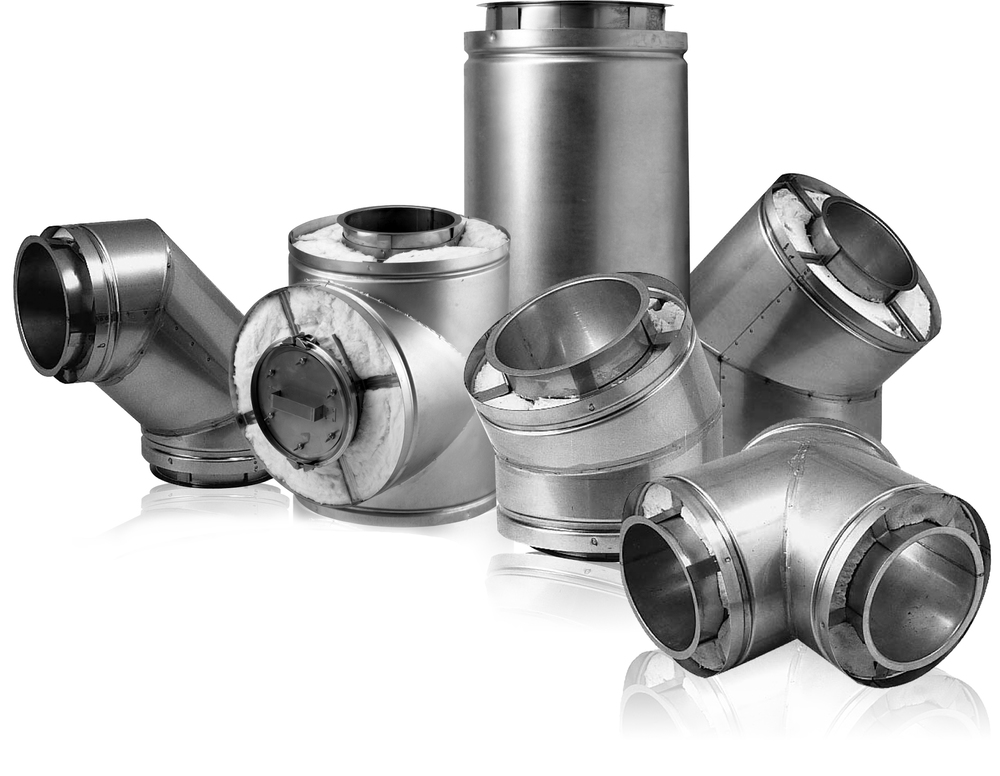

Array of components and accessories designed to make installation simple and quick
Complimentary assistance available for design, sizing and submittals for your project (contact your local sales representative)
Backed by Selkirk’s industry-leading Limited Lifetime Warranty for grease duct applications

Exhaust Applications:
