Pellet Vent - VP - Type L

Model VP is the DIYer's pellet vent of choice for a safe, efficient and cost-effective venting system. It has been engineered specifically for wood pellet burning appliances.

Available in 3" and 4" Diameters
Stainless Steel inner liner
Galvanized outer wall
Unpainted or Matte Black finish
Gasketed joint design

Model VP's proven coupling design with its built-in gasket, connects in seconds and ensures joint integrity. A full line of components increases installation flexibility.

3"-4" Diameters:

304 Stainless Steel inner liner
Galvanized outer wall for exterior use
Matte Black finish for interior use
For use with gas, oil and wood pellet burning appliances
1" clearance to combustibles
Double-wall design with 1/4" uniform airspace
Die formed male end eliminates sharp edges
Siliconized Rope Gasket at every joint - No sealant required
Variety of kits available
Type L Vent
Smart Choice Warranty on all components

Approvals:

Listed to UL 641
Listed to applicable portions of UL103

Images

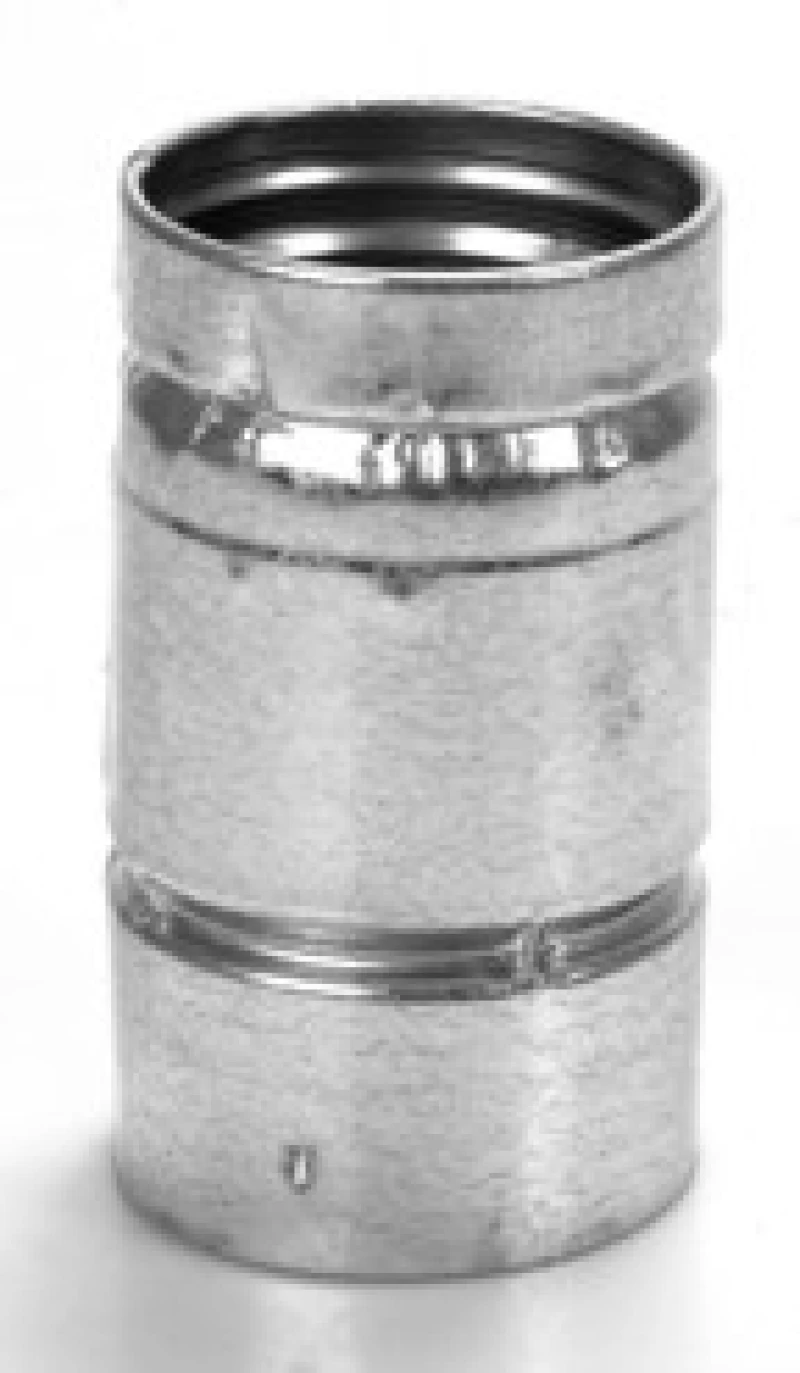

6" Pipe Length

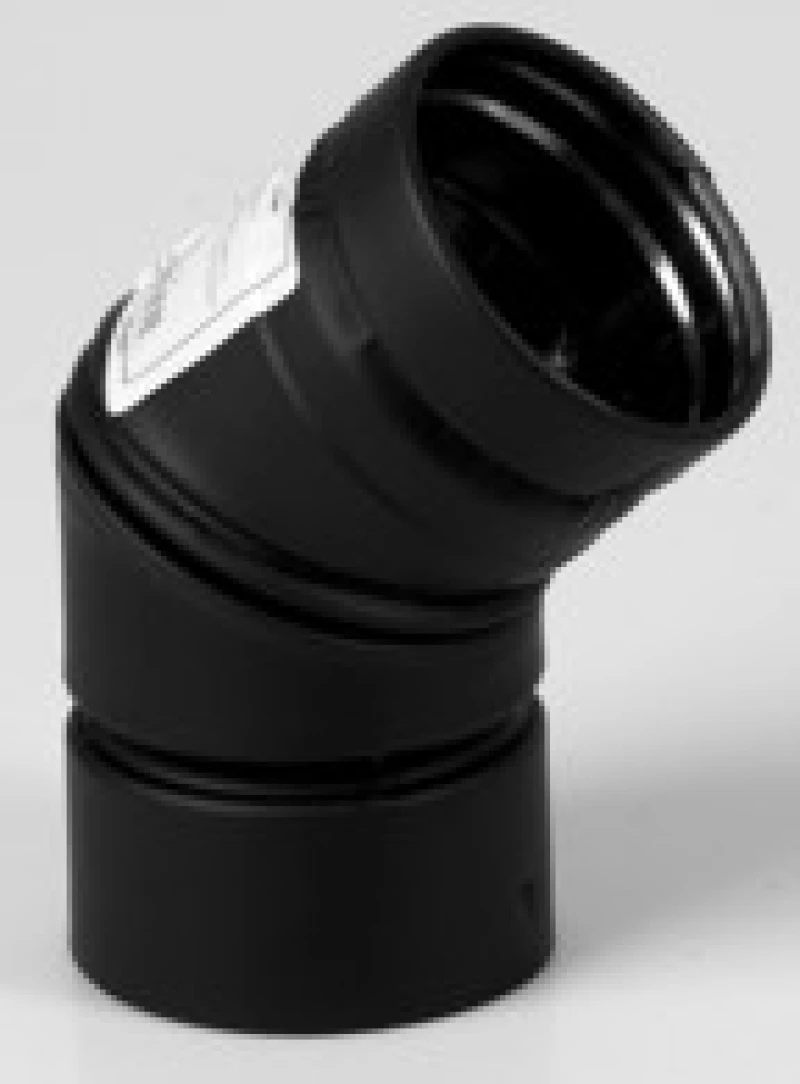

45° Elbow - Black

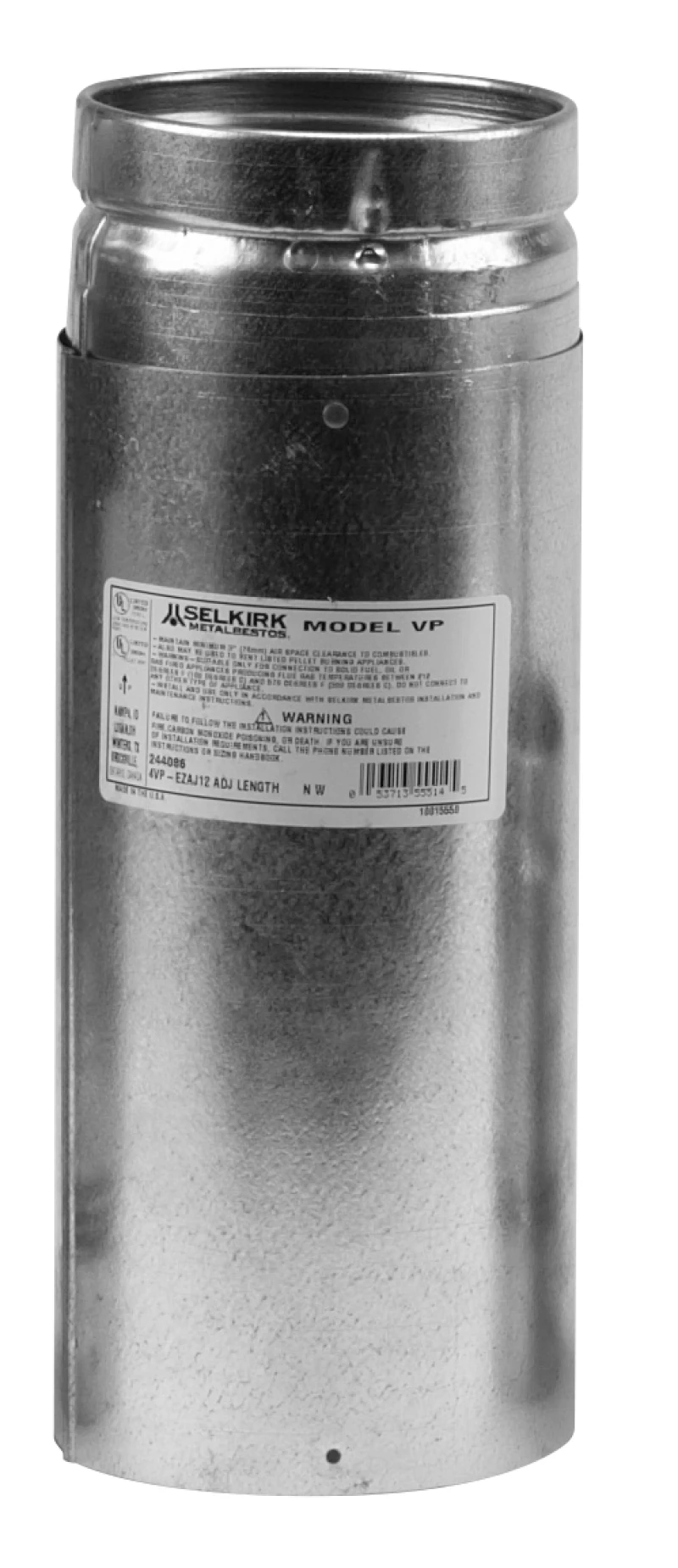

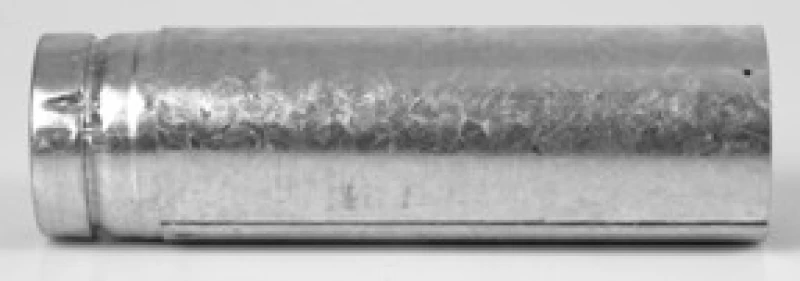

Adjustable Length

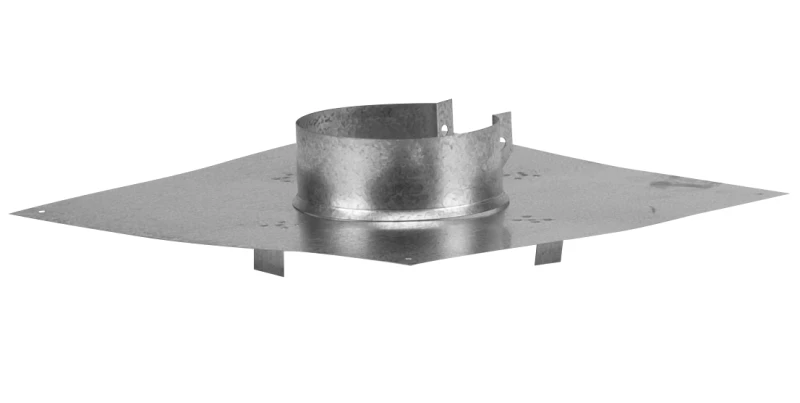

Ceiling Support/Firestop

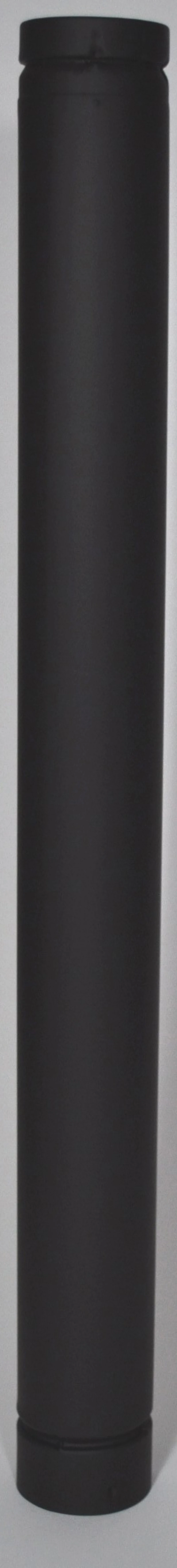

60" Pipe Length - Black

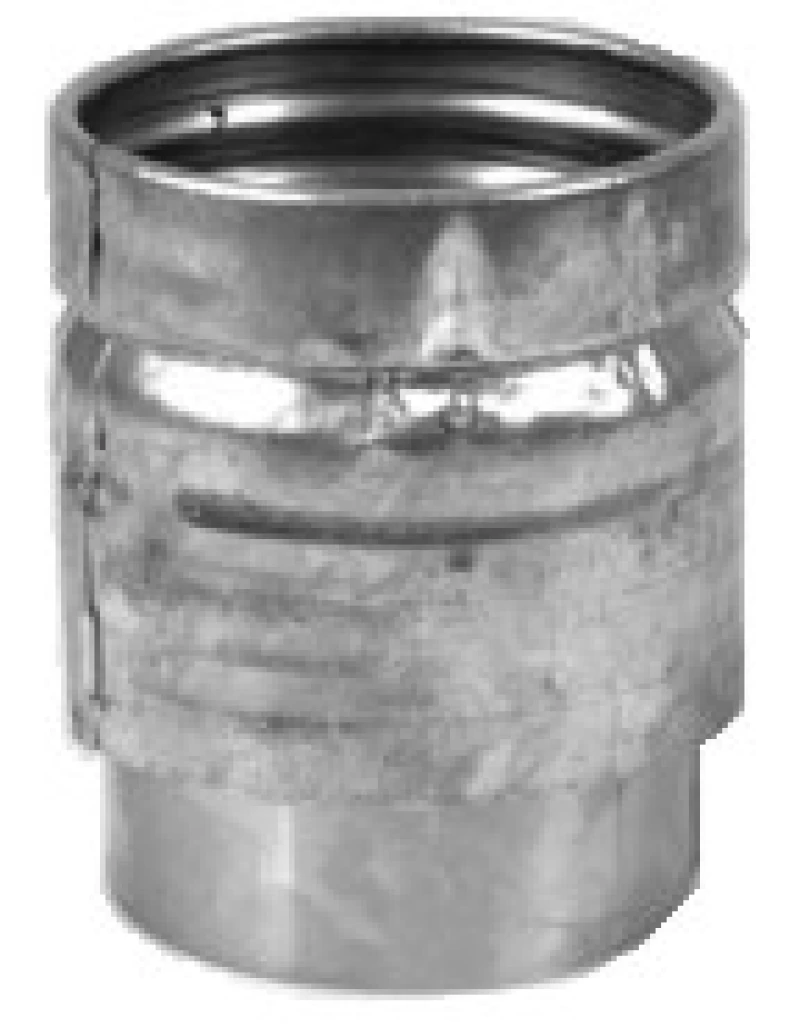

Pipe Connector

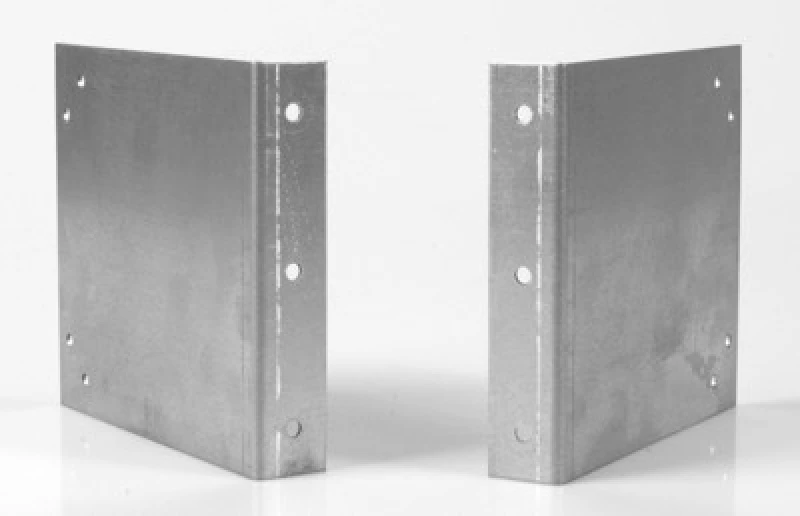

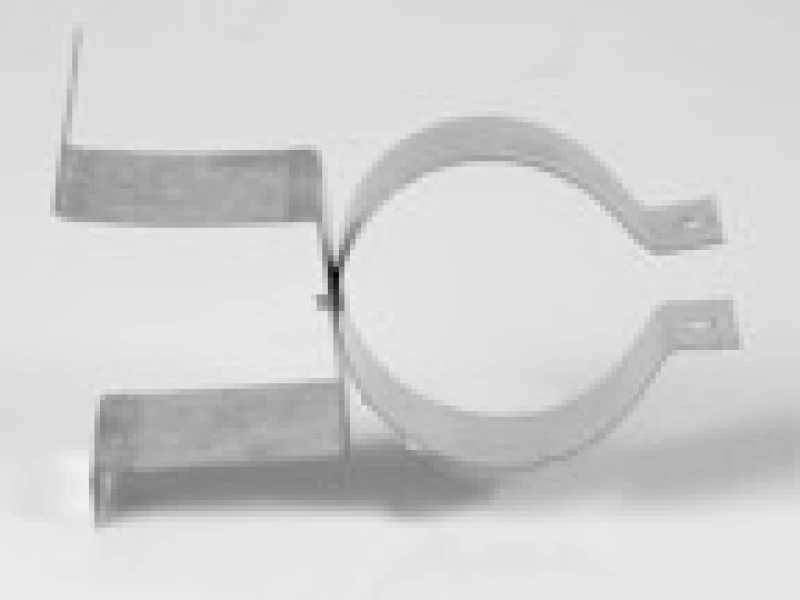

Wall Bracket

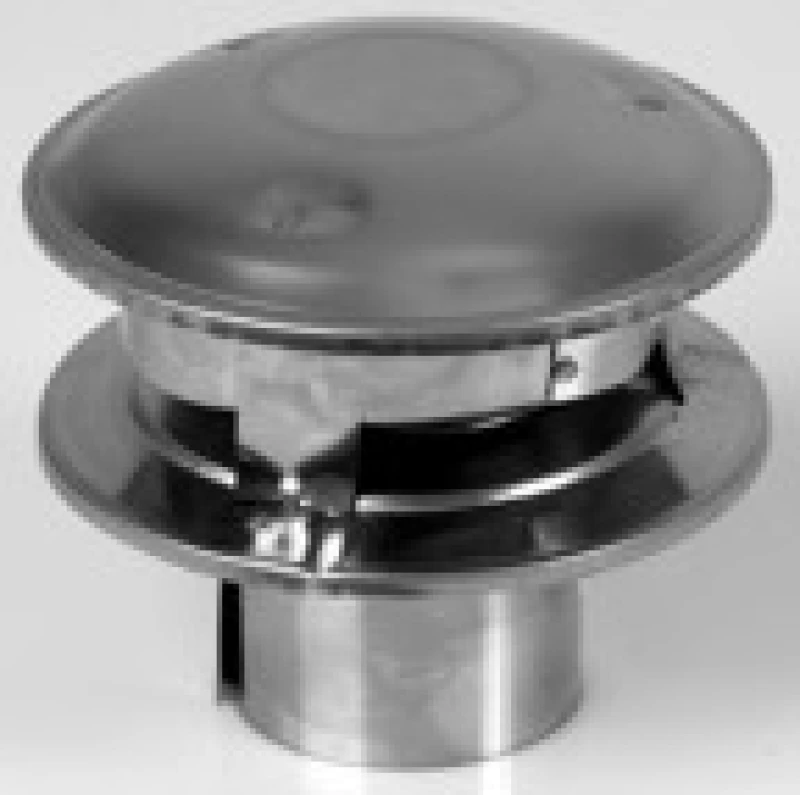

Vertical Cap

Tee Support

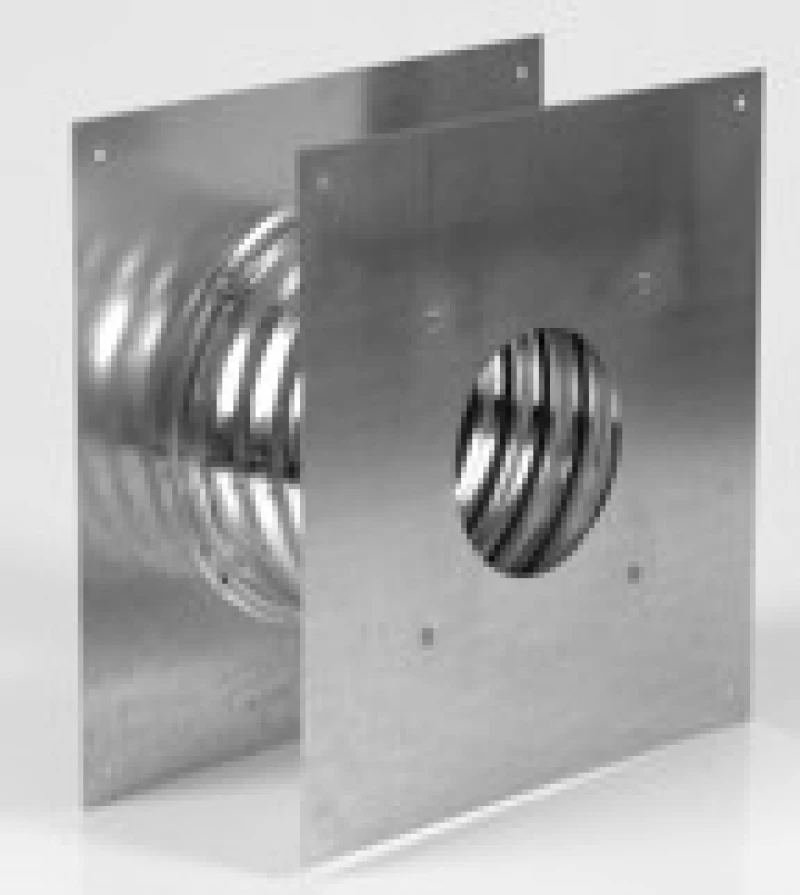

Wall Thimble

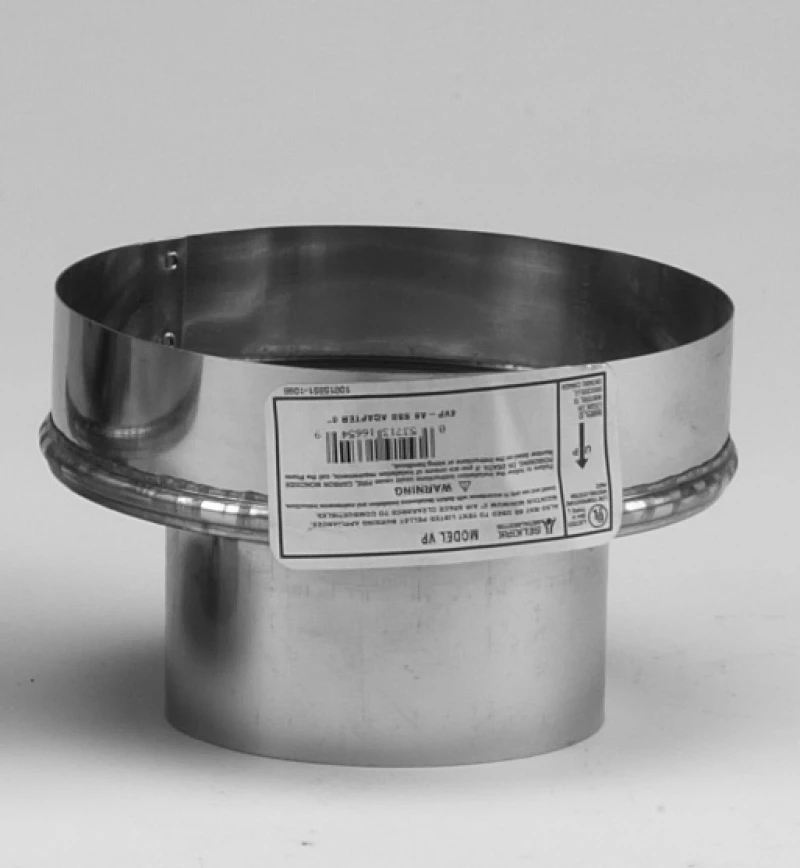

Chimney Adapter

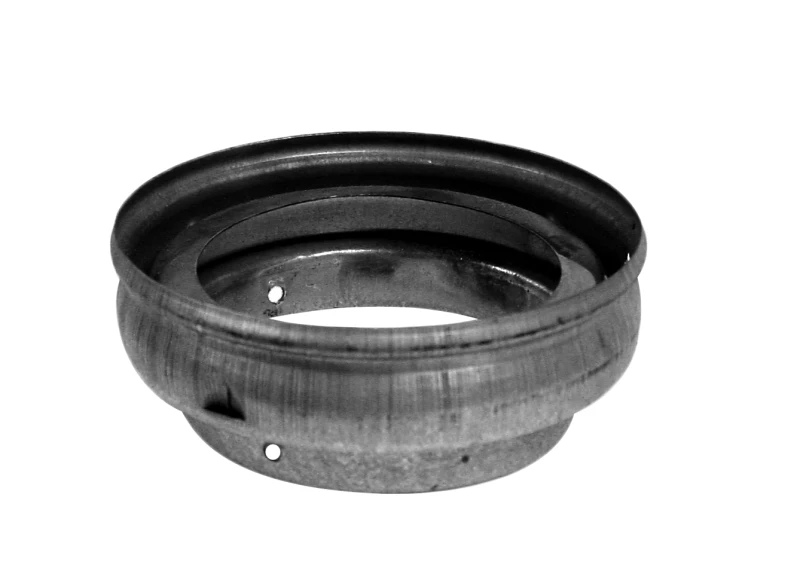

3" to 4" Increaser

Adjustable Length

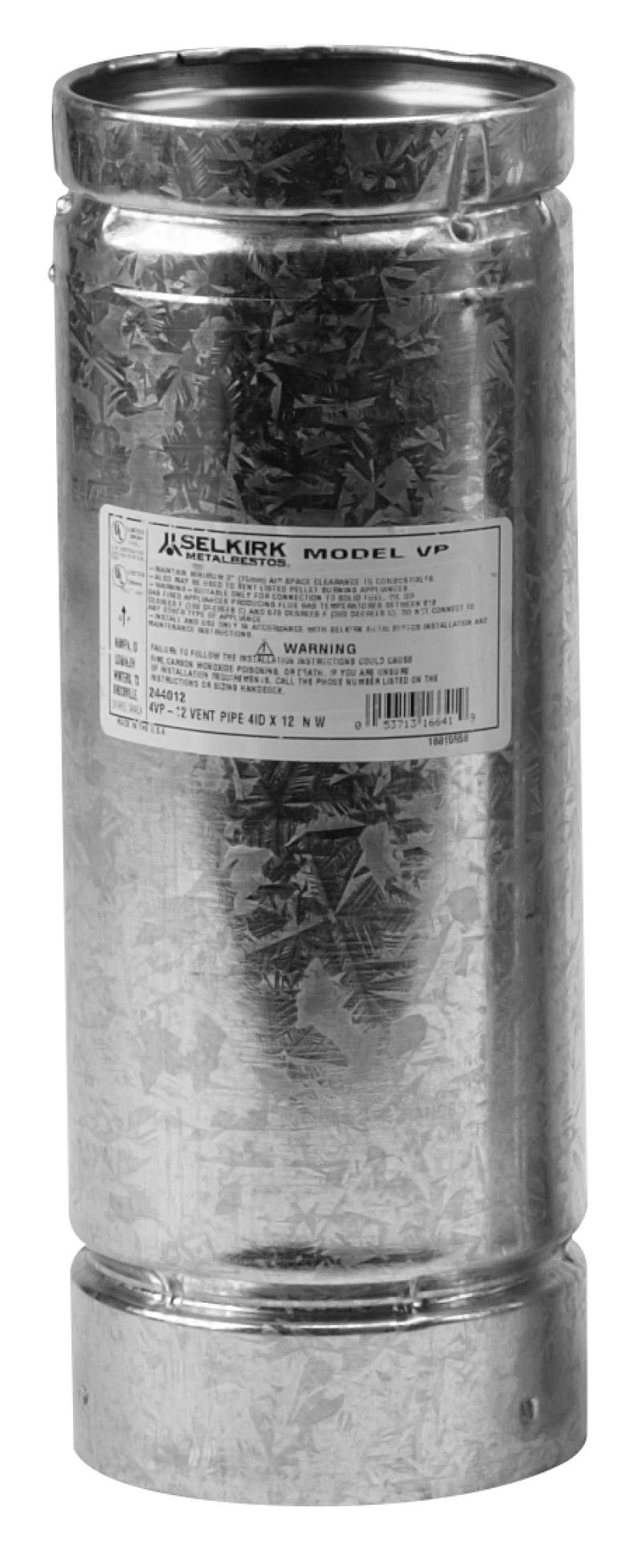

12" Pipe Length

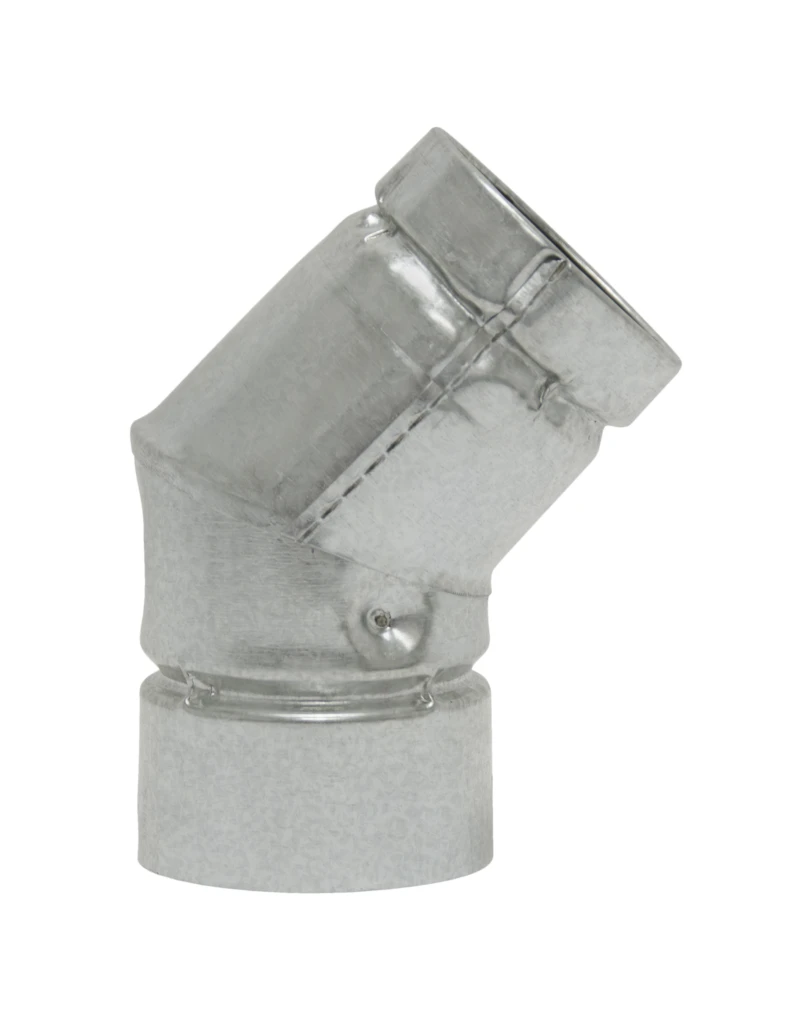

45° Elbow

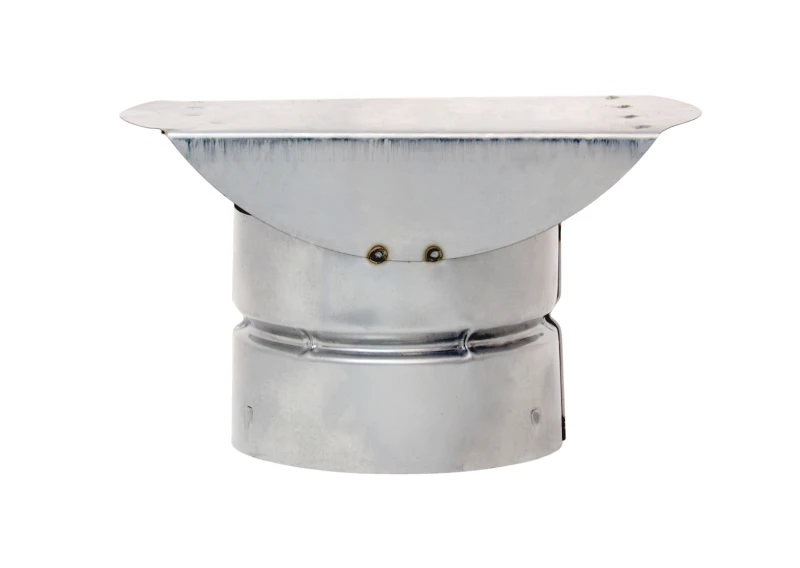

Horizontal Cap

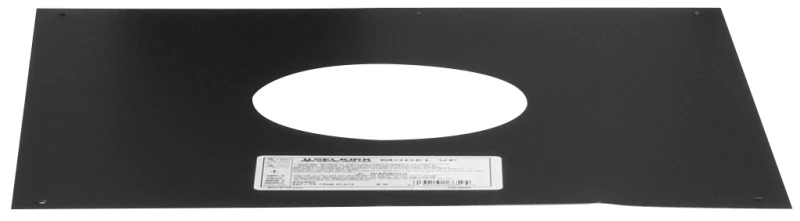

Trim Plate

Ceiling Support/Firestop

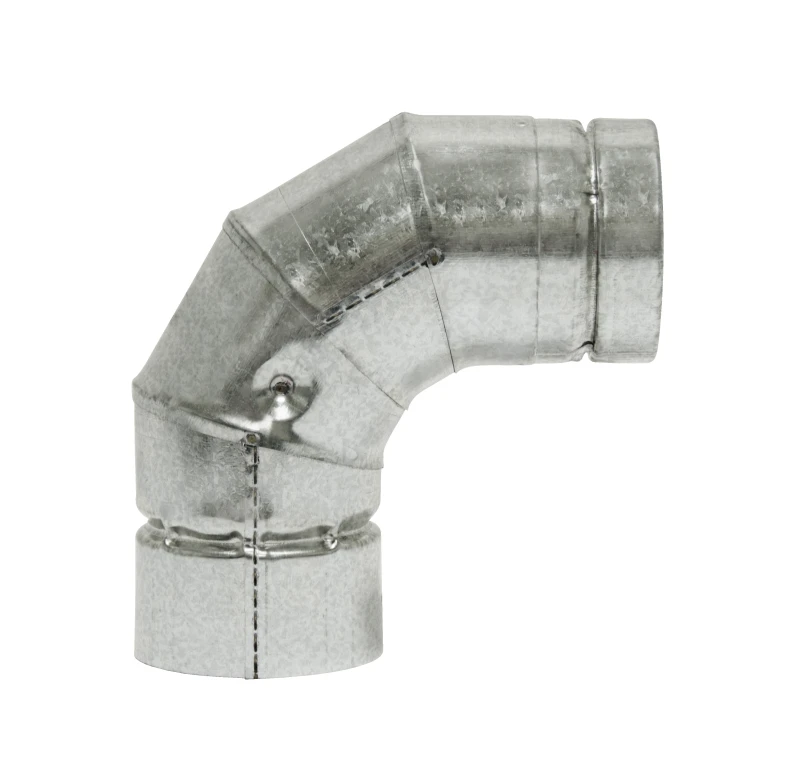

90° Elbow

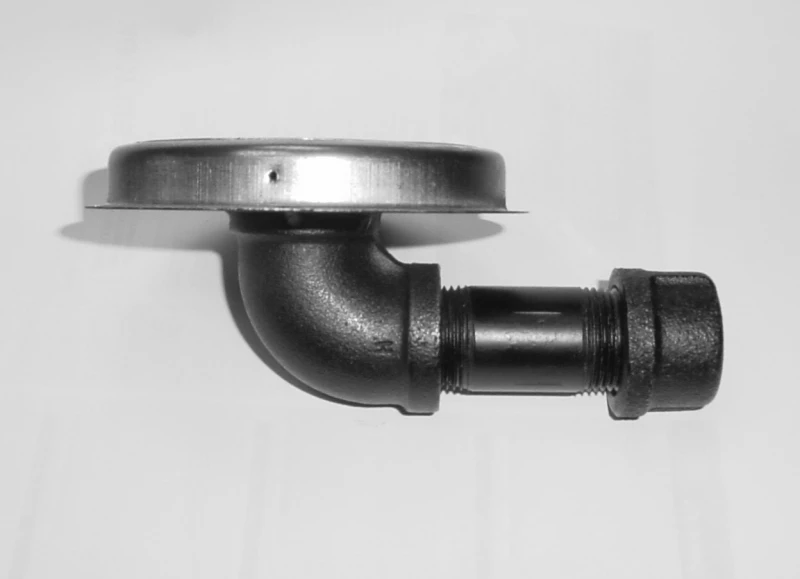

Vacuum Clean-out Cap

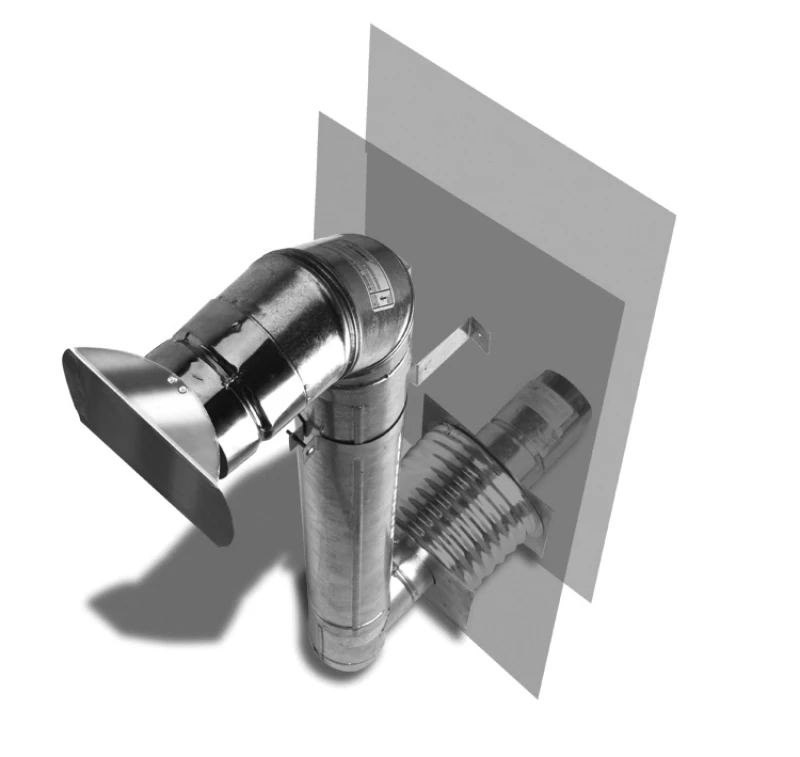

Thru-the-Wall Installation

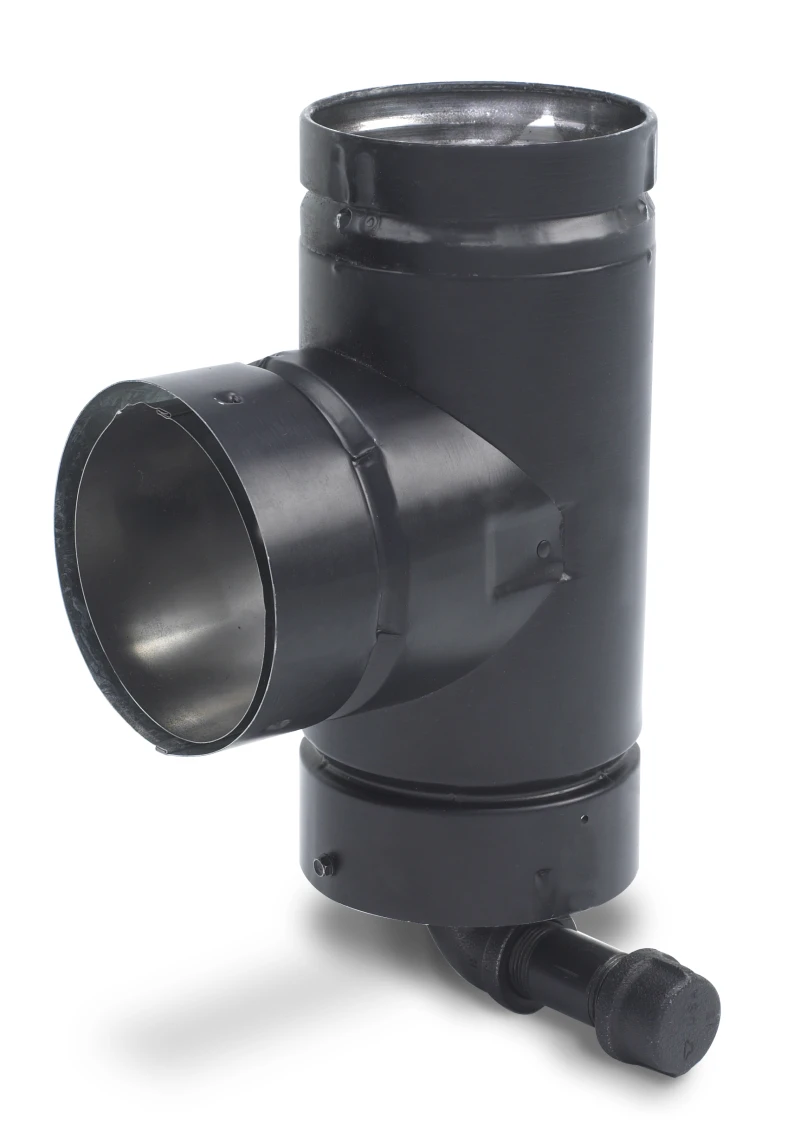

Tee/Vacuum Clean-out Cap - Black

Increaser Tee with Tee Cap

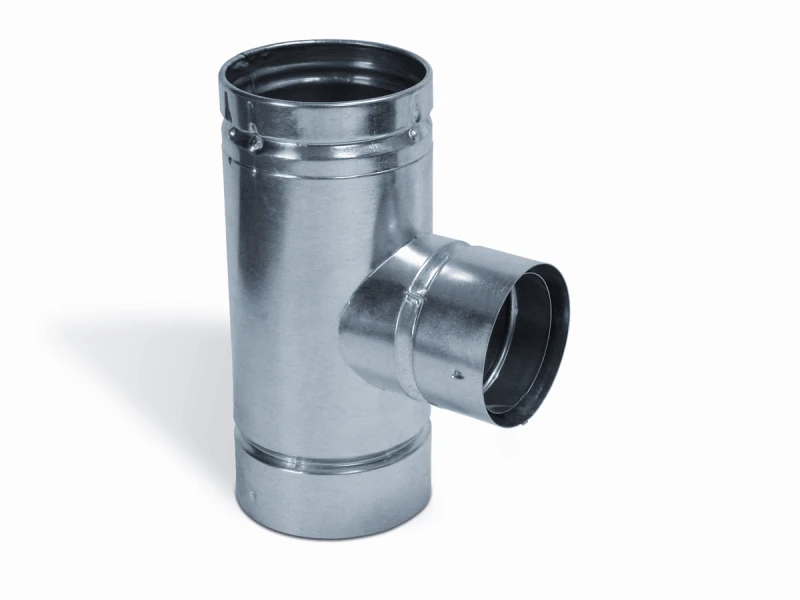

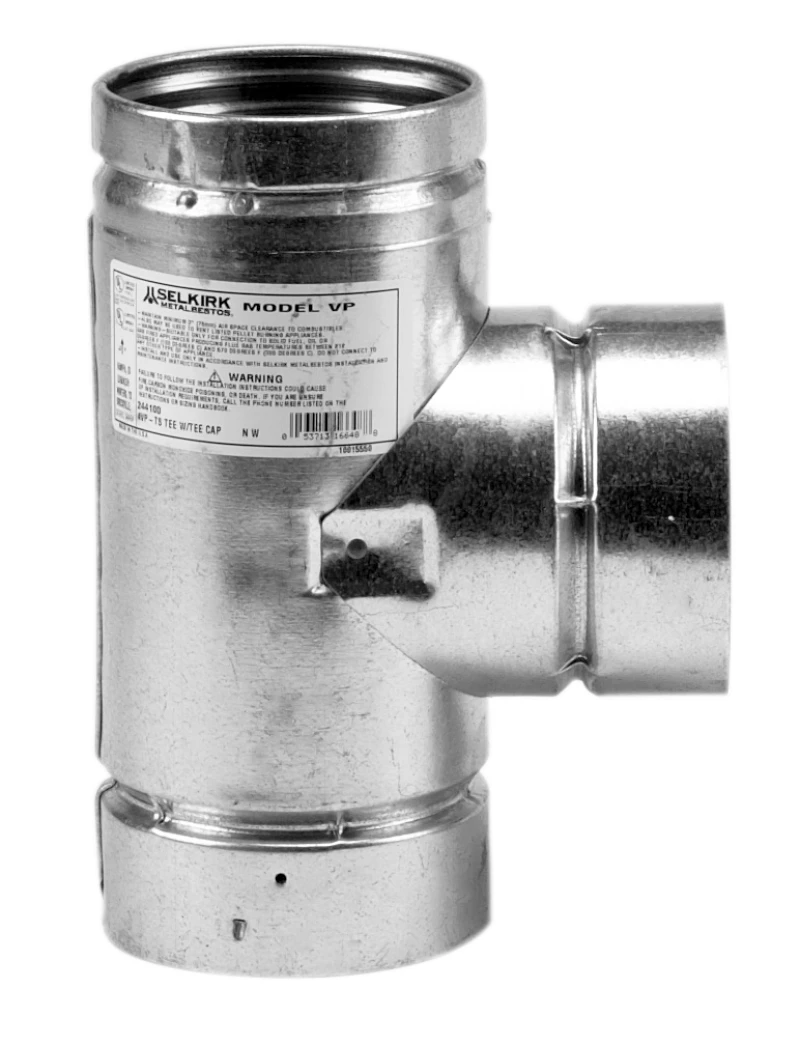

TS - Tee

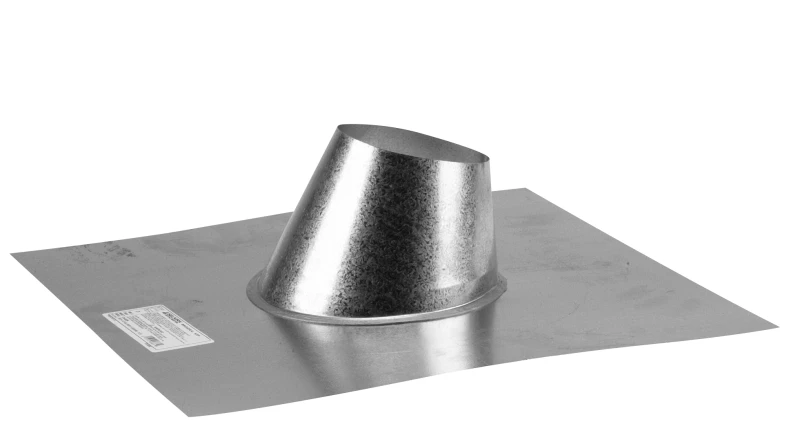

AF - Adjustable Flashing

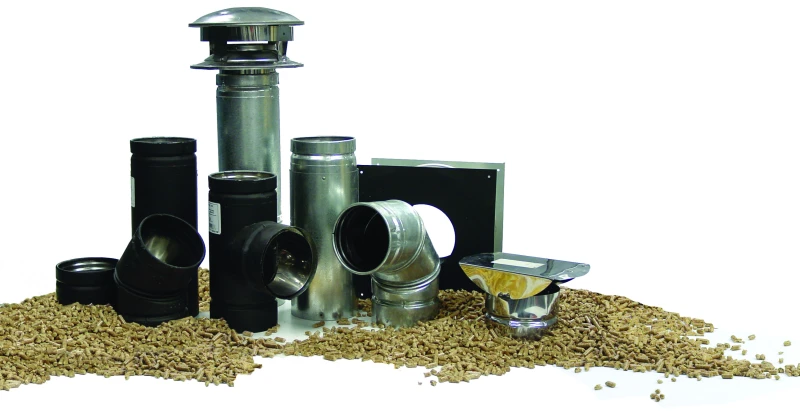

VP Pipe & Accessories

VP / DT Pipe & Accessories

VP / DT Up & Out Kit B

VP / DT Through The Roof Vertical Kit

Pellet Stove Adapter

Pellet Termination Adapter
